Floppy Disk Imaging

Home » Floppy Disk Imaging

DSC_3424 (Large)

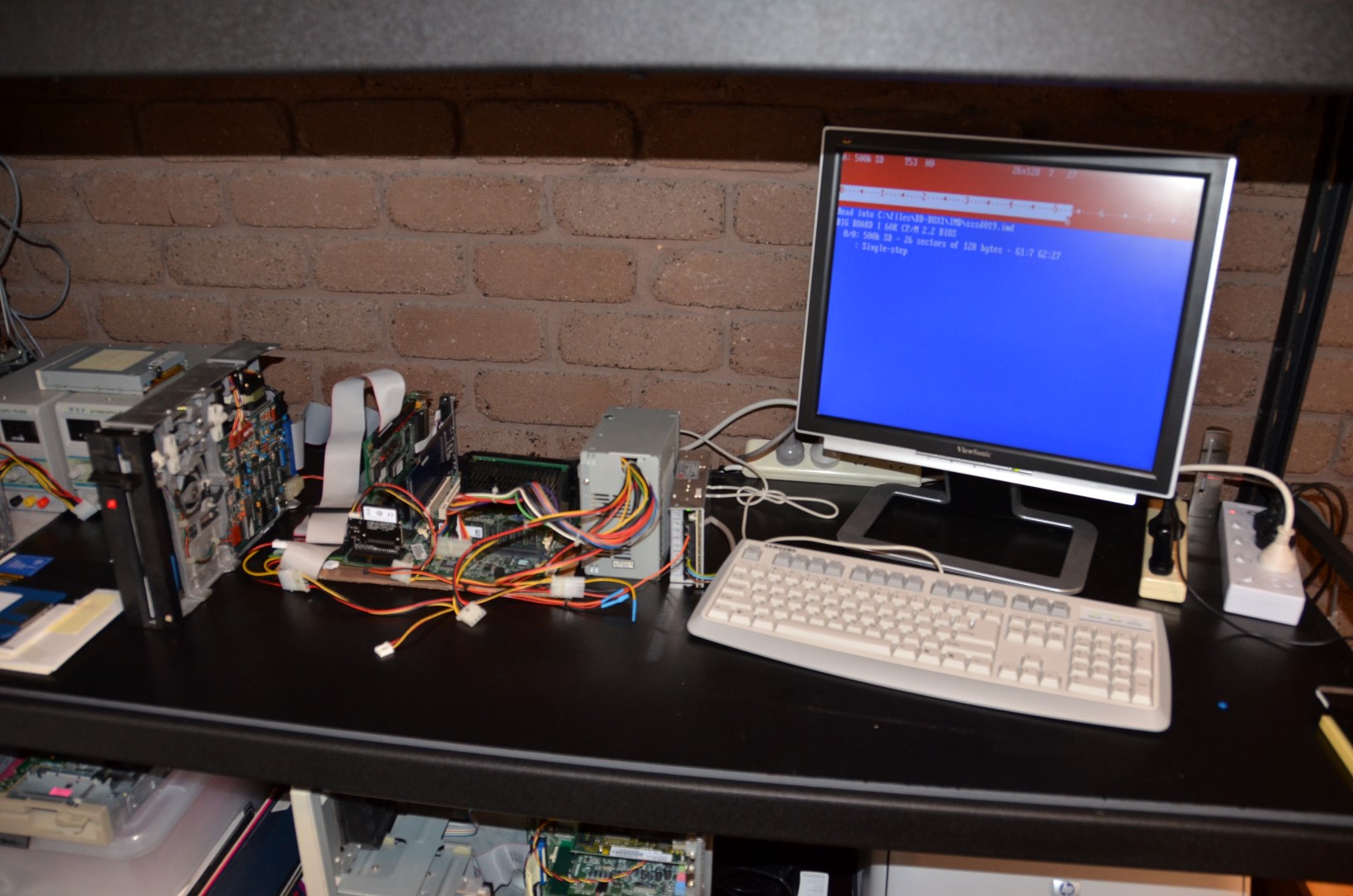

Floppy disks that are recorded in conventional “FM” or “MFM” format can often be imaged, and images can be written back to real floppy disks, using commonly available older-model PCs and peripherals. This applies to disks recorded in the original IBM 3740 “FM” (single-density) specification, and those recorded in the IBM 34 “FM/MFM” (single density track 0 and double-density on all other tracks) specification. This includes for example most CP/M (including Kaypro) disks and most TRS-80 disks, other than early TRS-80 Model 1 disks that used non-standard data address marks.

Here is a PowerPoint presentation describing the process and the equipment required:

Disk Imaging Techniques – VCF East 2014

The technique described in this presentation won’t work for systems that use other encoding methods (such as Apple II disks and 8-bit Commodore 5.25″ disks, which both use GCR). More complex tools such as Kryoflux may be useful for these, but I have not verified this.

Imagedisk

Dave Dunfield’s ImageDisk program (for MSDOS computers) can be downloaded here. I use this software extensively for disc imaging, particularly for my PDP-11 and S-100 computers.

The main manual that comes with ImageDisk (IMD.TXT) is also a valuable source of information for those wanting to learn more about disk imaging.
